Rane ME-15B Graphic Equalizer ME15B EQ MEQ
Details
- Status: Ended
- Listing # 696706
- ConditionUsed
- 2864 Page Views
Description
This Rane ME-15B Stereo Graphic EQ comes with an attached Power Cable.

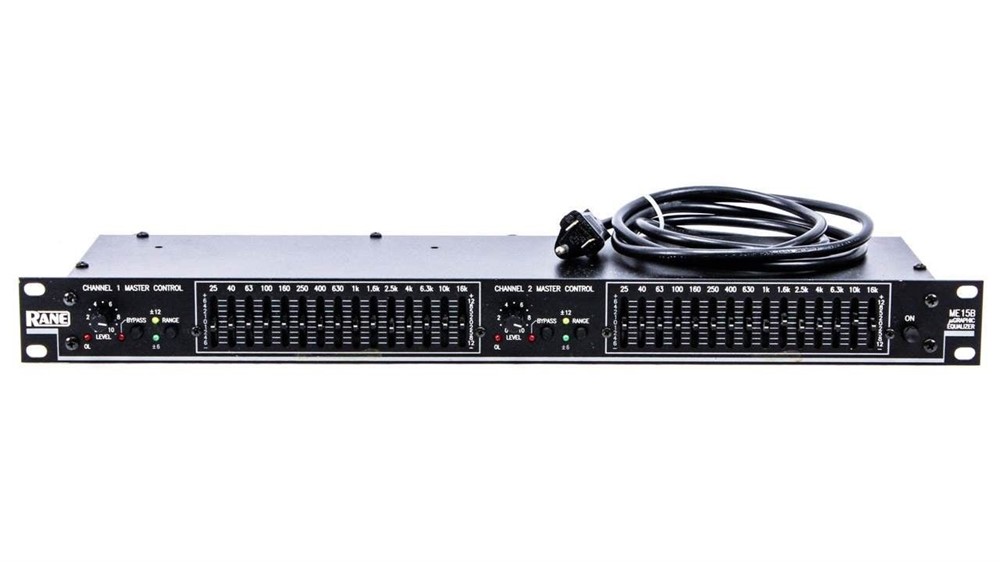

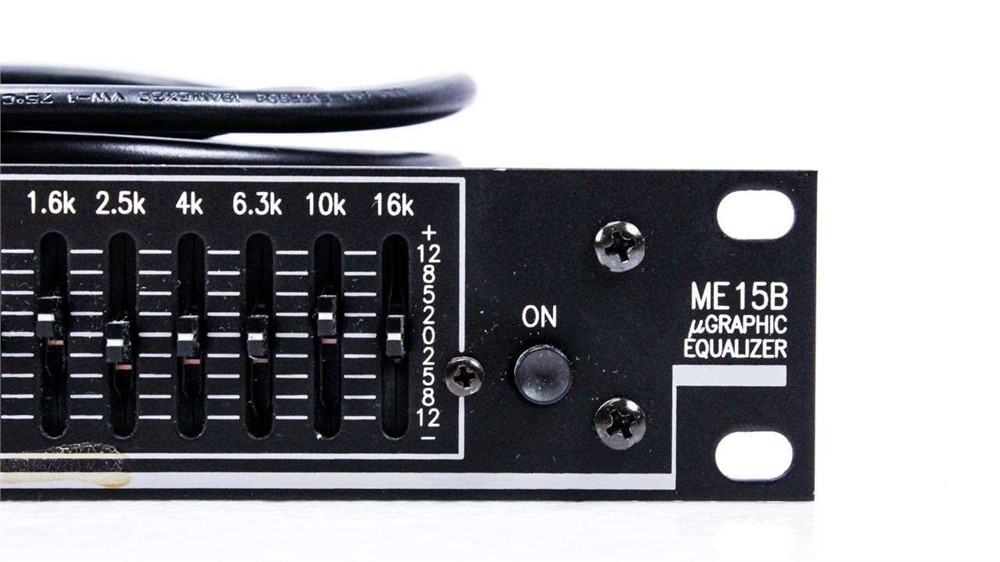

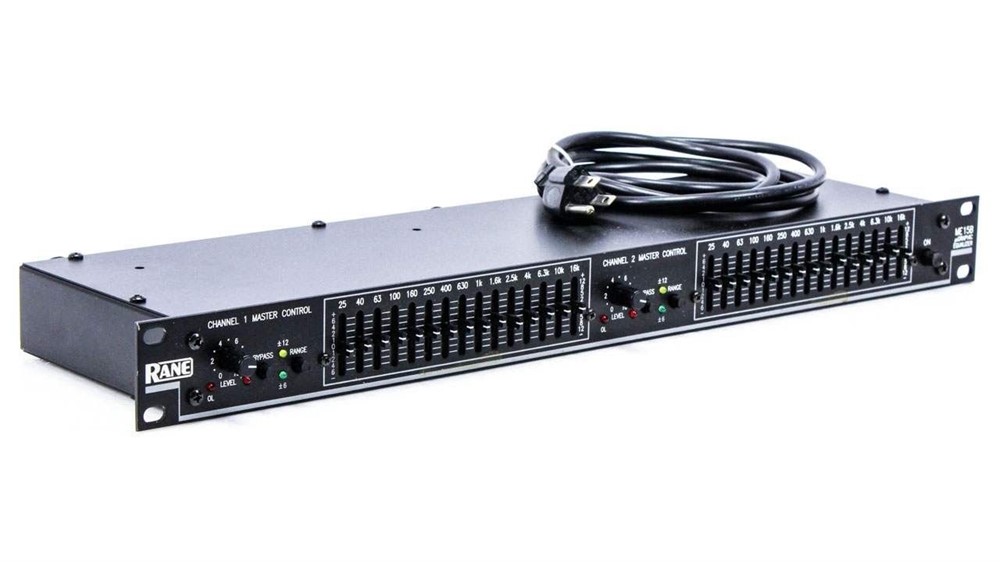

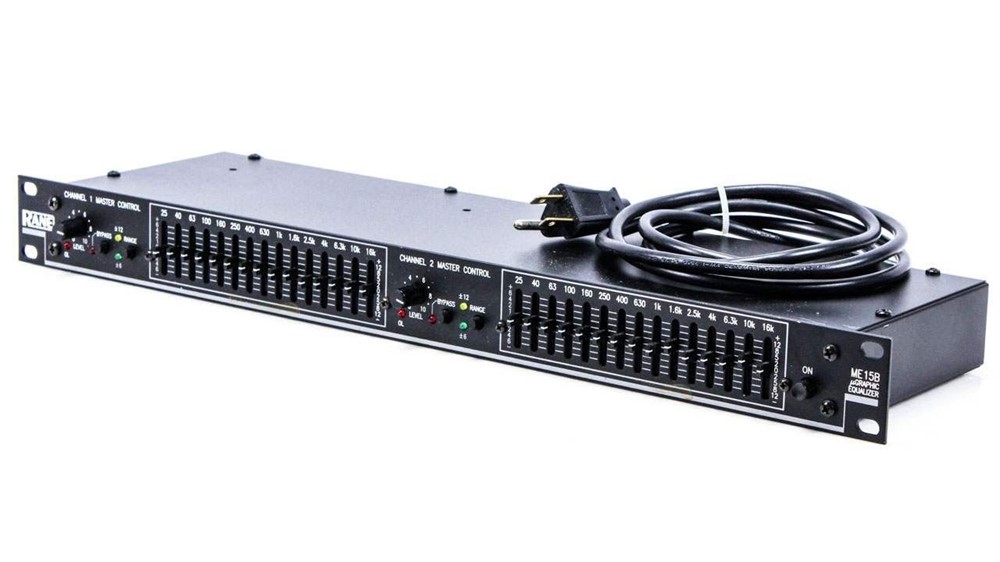

This unit is in good condition and works great. It has normal wear from racking and use, please see pictures for details on item condition.
The Rane ME 15B is a professional quality stereo 2/3 octave constant-Q micrographic equalizer that is perfect to give you a wide range of control over system audio.
Product Details:
The Rane ME 15B is a two channel, 2/3-octave constant Q micrographic equalizer. The ME 15B utilizes compact 20 mm sliders,and features a Range switch for high slider resolution in the -6 dB mode. The -12 dB mode provides a wide range of control over system audio.
The active filter sections feature Rane's innovative constant-Q (constant bandwidth) design. This means the bandwidth of each individual filter is guaranteed to be narrow enough to prevent unwarranted interaction between filters, yet wide enough to produce exactly the type of correction curve demanded by even the most unusual acoustic surroundings. This differs dramatically from conventional designs of the past, encumbered with the unfortunate characteristic of changing bandwidth when changing boost/cut amounts.

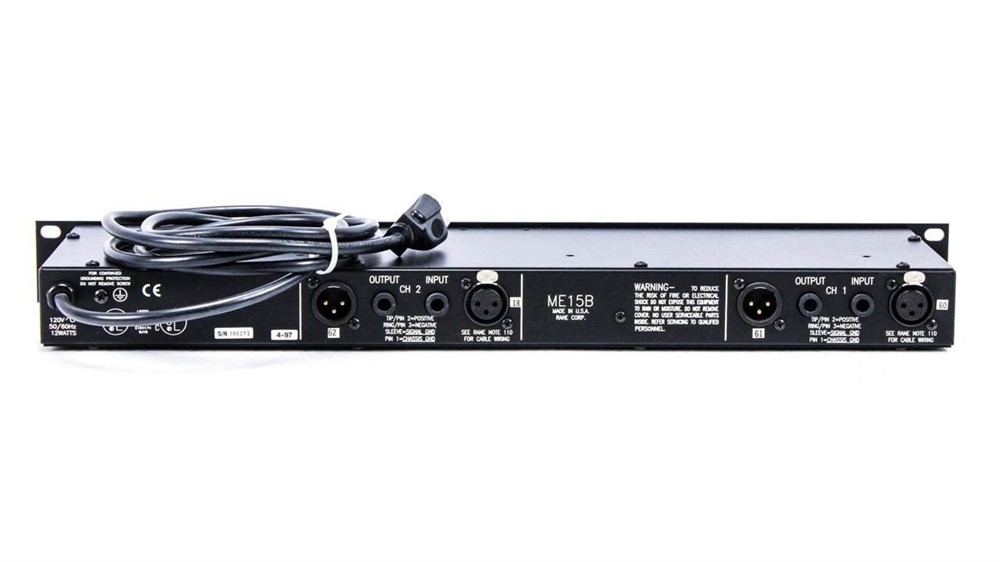

Front panel controls and indicators, aside from the sliders and the filter range switches, include an overall Level control for each Channel as well as Overload indicators and passive Bypass switches. The rear of the unit provides both 1/4" Tip-Ring-Sleeve and XLR connectors for each of the Inputs and Outputs. The Inputs and Outputs are fully actively balanced. Unbalanced sources may be connected through the use of either mono 1/4" TS connectors, or by tying the ring to the sleeve on 1/4" TRS plugs.
- 2 x 15 bands of constant-Q filters
- 6/12 dB boost/cut range switchable; 20 mm sliders
- Level controls, bypass switches, overload and signal LEDs
- Balanced XLR and 1/4" TRS connectors
